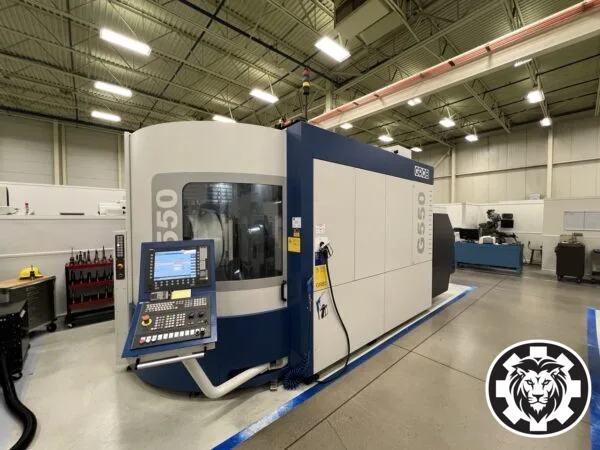

Grob G550 5-Axis HMC, 2016 – Renishaw Probe, Mist Collector
Have one to sell?
ConditionUsed
1 available
Pallet Load Capacity: 1653 lbs
Table Diameter: 30.31″
X-Axis Travel: 31.5″
Y-Axis Travel: 40.2″
Z-Axis Travel: 38.2″
A-Axis Swivel: -185° to + 45°
B-Axis Indexing: 0.001°
Spindle Taper: HSK 63A
Spindle Speed: 16,000 rpm
Spindle Motor: 43 hp
ATC: 50 Tool
Approx. Dimensions: 253″ x 114″ x 131″
Approx. Weight: 57,000 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity
Siemens Sinumerik 840D Control
High Pressure Coolant System
Compressed Air Through Spindle
Renishaw Probe
Mist Collector
Oil Skimmer
Chip Conveyor
Grid Hole Pattern Pallet Design
Additional Pallet Included
