Haas TM-1 VMC, 2006 - CAT40, Single Phase or 3 Phase, Open to Offers
Have one to sell?
ConditionUsed
1 available

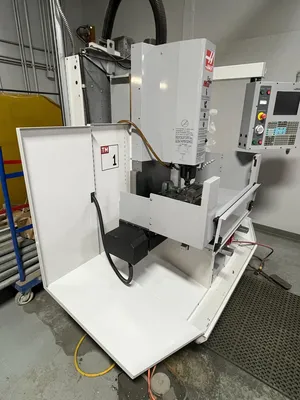

Haas TM-1 40-Taper Mill VMC 2006: Well-suited for prototyping and small-scale production. Features include 30"x12"x16" travels, 7.5 HP spindle, #40 CT taper, 4,000 RPM, and 47.5"x10.5" table. Max load 1,000 lbs. Runs on 208-240V with 25/40A draw.
Power and Electrical:
Current: Up to 10,000 amps
Frequency: Compatible with both 50/60 Hertz
Voltage Range: 208–240V
Current Draw:
Full Load: 25/40 amps
Largest Load: 15 amps
Short Circuit Rating: Designed to handle short circuit conditions effectively
Travel and Performance:
X Axis Travel: 30"
Y Axis Travel: 12"
Z Axis Travel: 16"
Rapid Rate (X/Y/Z Axis): 200 IPM
Table and Load Capacity:
Max Table Load: 1,000 lbs
Table Size: 47.5" x 10.5"
Spindle and Motor:
Spindle Motor: 7.5 HP
Spindle Speed: 4,000 RPM
Spindle Taper: #40 CT
Weight and Construction:
Machine Weight: 4,300 lbs
With its robust capabilities, flexible power options, and high-precision components, this machine is well-suited for operations requiring reliability and versatility, particularly in prototyping and small-scale production environments.
