| Swing | 30" | 762 mm |
| Machining Length | 32" | 812.8 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 17" | 431.8 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Haas Control) | CNC (Haas Control) |

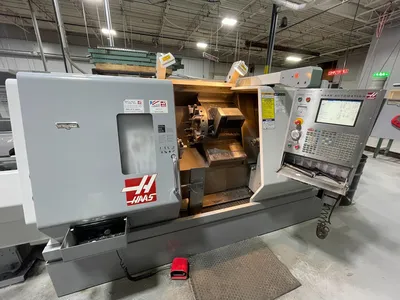

SL-30T
SPECS
Workholding: 10" Chuck
Aluminum Soft Jaws
Between Centers: 39" (991 mm)
Max Cutting Dia. 17" (432 mm)
Max Cutting Length 34" (864 mm)
Voltage: 208/230
Phase 3
50/60 Hertz
Full Load: 80 Amps
Largest Load: 70 Amps
----
BAR FEEDER SPECS
Capacity: 3/8" to 31/8" dia., up
to 60" len (9.53 mm to 79.38
mm, up to 1524 mm)
Control: Haas CNC control
Pushers: Standard 3/8" and 3/4"
Tray capacity: 1" (25 mm) dia.
bars x 30 pcs.
Weight: 900 lb (408 kg)
LOW HOURS (~1,700)
Servo Bar 300 Barfeeder
Tailstock
