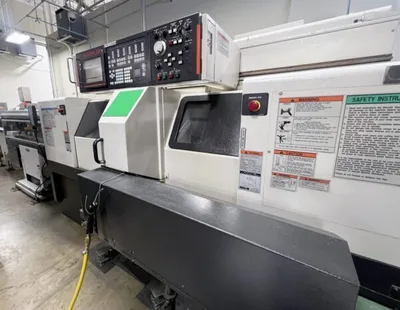

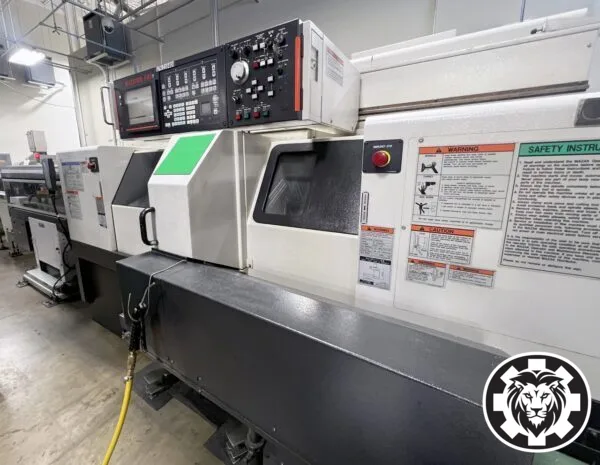

Mazak Multiplex 6200Y CNC Turning Center, 2009 – Y-Axis, Live Tool Milling, LNS Bar Feeder, Conveyor

X-Axis Travel: 9.45″
Z-Axis Travel: 17.32″
Distance Between Centers: 47″
Max Swing Over Bed: 12.60″
Max Turning / Cutting Length: 20.87″
Max Cutting / Turning Diameter: 10.24″
C-Axis Equipped
Y-Axis Equipped
Live Tooling / Milling Equipped

Bar Capacity: 2.00″
Chuck Size: 8.0″
Chuck Type: Hydraulic
Chuck Description: Kitagawa B-208 3-Jaw
Spindle Bore: 2.44″
Spindle Speed: 5,000 RPM
Spindle Motor: 20 HP
Spindle Nose: A2-6

Sub-Spindle Bar Capacity: 2.00″
Second Chuck Size: 8.0″
Second Chuck Description: Hydraulic Kitagawa B-208 3-Jaw Chuck
Second Spindle Bore: 2.44″
Second Spindle Speed: 5,000 RPM
Second Spindle Motor: 20 HP
Second Spindle Nose: A2-6

Turret: 12 Tool Positions
Second Turret Positions: 12
Live Milling Max RPM: 4,500 RPM
Max Machining Length (Chuck Work): 7″
Max Machining Length (Shaft Work): 21″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
