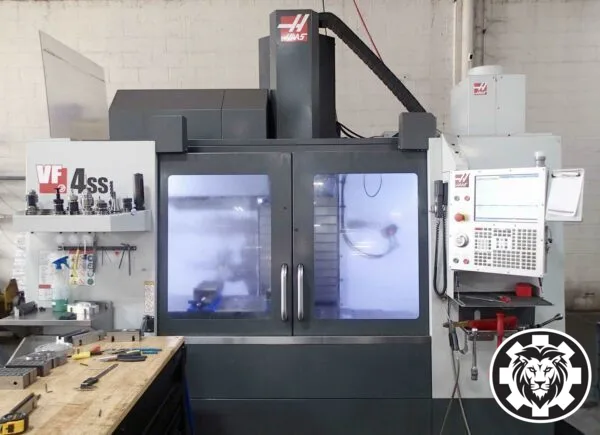

Haas VF-4SS 5-Axis VMC, 2020- TR200Y Trunnion Rotary Table, TSC, Probing, HSM, TCPC & DWO
Have one to sell?
ConditionUsed
1 available
2020 Haas VF-4SS 5-Axis VMC with TR200Y Rotary Table features a 12,000 RPM spindle, TCPC & DWO, WIPS, HSM, and automatic tool changer. Equipped with through spindle coolant, Wi-Fi camera, remote jog handle, and more. Excellent for precision machining.
X-Axis Travel: 50″
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Table Size: 52″ x 18″
A-Axis Tilt: +/- 120 degrees
B-Axis Indexing: 360 degrees
Rotary Platter Size: 7.87″ (200mm)
Spindle Speed: 12,000 RPM
Spindle Power: 30 HP
Auto Tool Changer: 30 + 1 Positions
Spindle Taper: CAT 40
Max Table Load: 1750 pounds
Electrical Requirements: 220 V; 3 Ph; 50/60 Hz
Approx Dimensions: 152″ x 99″ x 106″
Approx Weight: 11,720 lbs
Trunnion Rotary Table- Haas TR-200Y
Platter Size: 7.87″ (200mm)
Max Weight: 80 lbs
Max Part Swing: 8.1″
Max Table Tilt (A-Axis): +/- 120 degrees
Max Tilt Speed: 100 degrees/second
Rotary Indexing (B-Axis): 360 degrees
Max Index Speed: 130 degrees/second
A/B-Axis Rotation Resolution: 0.001 degrees
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Haas CNC Control
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Haas TR-200Y Trunnion Rotary 5th Axis Table
Through Spindle Coolant
Programmable Coolant Nozzle & Coolant Maintenance Package
WIPS- Wireless Intuitive Probing System
TCPC & DWO- Tool Center Point Control & Dynamic Work Offsets
High Speed Machining
12,000 RPM Spindle
30 + 1 Automatic Side Mount Tool Changer
Chip Auger
Mist Collector
Automatic Doors
Wi-Fi Camera
Remote Jog Handle
Coolant Tank
Electrical Transformer Additionally Available
Feed Cutting Time: Approx 2,605 Hours
