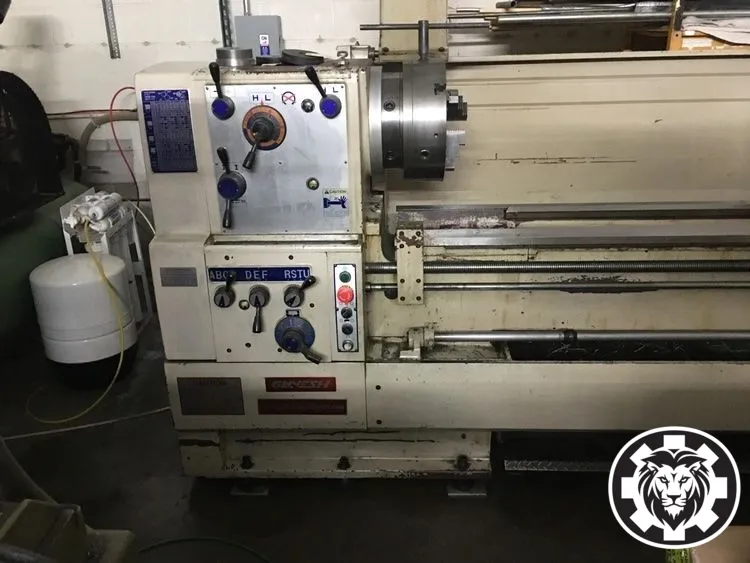

26" x 160" Ganesh GTW-26 Heavy Duty Engine Lathe, 2009 - Tooling + Extra Chucks Included!

Capacity & Dimensions-
Swing over Bed 26” (660mm)
Center height 13” (330mm)
Swing over Cross Slide 18-1/16” (460mm)
Swing thru Gap 33-1/4” (845mm)
Length of Gap in front of faceplate, D1-11 6-1/2” (165mm)
Bed width 16-1/8” (400mm)

Spindle-
Spindle Motor Horsepower 15-HP 3-Ph 12kw
High 1200 120 520 50 860 85
Low 375 35 160 15 265 25
Spindle speeds – 12-speeds from 15 – 1200 rpm) (High & Low speed range)

Spindle Bore 4-1/8” (105mm)
Spindle Nose D1-11 Camlock (A1-11 optional)
Spindle taper in spindle nose MT-8 Morse Taper # 8
Spindle taper reduction sleeve provided MT-5 MT-8 to MT-5
Spindle Max weight capacity (Chuck only) 660 lbs (300kgs)
Spindle Max weight capacity (Chuck and Tailstock) 1,650 lbs (750kgs)
Spindle Max weight capacity (Chuck, Steady Rest and Tailstock) 3,300 lbs (1,500kgs)

Carriage -
Cross slide travel 14.96” (380mm)
Cross slide width 7-3/32” (180mm)
Cross slide lead screw pitch .200”/rev.
Cross slide resolution per division 0.001” (on diameters)
Carriage lead screw diameter 1-1/2” (38mm)
Carriage lead screw pitch 4 TPI (6mm pitch)

Compound- Four T-nut lock-down bolts on compound cross-slide base
Compound top slide travel 10” (255mm)
Compound top slide width 4-11/32” (110mm)
Cutting tool height maximum 1.0” x 1.0” 25mm x 25mm

Tailstock- (2-speed quill advance) Engraved with inch / metric quill graduations
Quill diameter 2-15/16” (75mm)
Quill stroke 6-5/16” (160mm)
Quill taper MT-5 Morse Taper # 5
Tailstock body set-over adjustment ± ½” (± 13mm)

Thread Cutting-
Thread cutting range – 60 inch pitches 2 – 112 TPI 2 – 112 TPI
Thread cutting range – 60 metric pitches 0.2 – 14mm 0.2 – 14mm
Thread cutting range – 50 diametral pitches 4 – 112 D.P. 4 – 112 D.P.
Thread cutting range – 50 module pitches 0.2 – 7 M.P. 0.2 – 7 M.P.

Feeds- (with clutched feed shaft for safety)
Feeds – longitudinal - 50 feeds 0.0014” – 0.0387”/rev. 0.037 – 1.04mm/rev.
Feeds – cross - 50 feeds 0.0007” – 0.01935”/rev. 0.0185” – 0.52mm/rev.

Power Requirements 220 vac, 3-Phase, 42-amps (440vac optional)
Coolant System 1/8-HP Pump Motor, 5 gallon (20L) tank capacity

All set up to do long rolls!

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
