Multi-Station Rectangular Vacuum Chuck with High Flow - Brand "New" From Haas

Multi-Station Rectangular Vacuum Chuck with High Flow - Brand "New" From Haas

-114" x7116" Vac-U-Seal Gasket Material for use with Coolant in
rolls
-114" Vacuum Hose
-Heavy-Duty Automatic Coolant Return System
-Vacuum Hose - Foot
-Vacuum Hose Barbs x 1-114" NPT (Vacuum Chuck)
-Vacuum Hose Barbs x 2" NPT (1-1l2" NPT plus one PVC bushing)
-Redundant EStop Economical Vacuum Safety
System with a Digital Vacuum Gage and an Alarm Buzzer and Light.

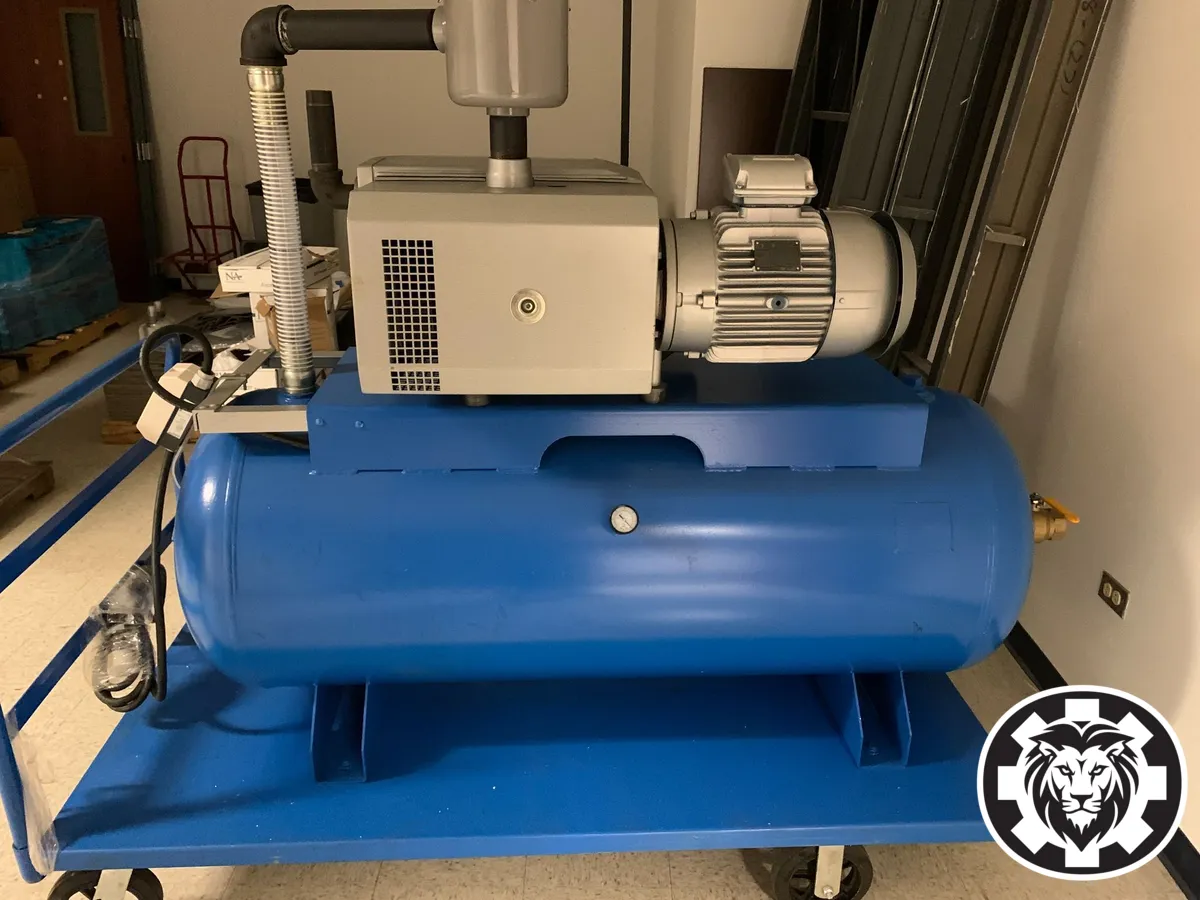

-Heavy Duty Stationary Vacuum System.
-Special Synthetic Vacuum Pump Oil for Heavy
DutySystem-l Gallon

-Rail
The rail mounting unit will be 4" wide by 2"
tall by 20" long and have three (3) threaded 112"-13 drilled and
tapped holes (for the 112" SHCS on the Vacuum Chuck Base Plate)
as well as a milled slot in the bottom to match a variety of machine
tool table patterns (to accommodale 112"-13 SHCSs). The rail
mounting unit allows mobility between different vertical machining
centers with varying t-slot patterns position that use 112'-13 SHCSs.
With the rail mounting system, please allow'for an extra 2" o'f Z
height off of the machine tool bed. The overall dimensions including
the 3-1/2" thick vacuum chuck off of the machine table surface is
approxi mately 5-1 I 2" lall.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
