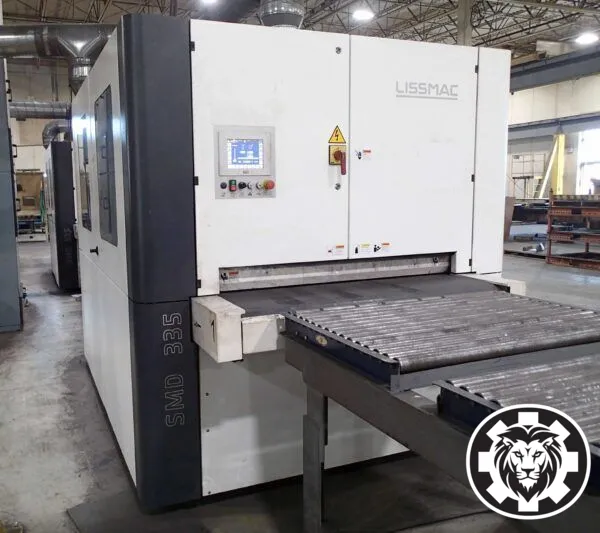

Lissmac Steelmaster SMD 335 REE-S Deburring Edge Rounding Finishing Grinder, 2022

Operational Width: 53″
Max Material Thickness: 4.75″
Edge Rounding up to 2mm

Working width: 53.15”
Material thickness (min – max): 0.04” – 4.75”
Part size min (vacuum): 2 x 2 inches
Max part weight: 202 lbs/ft
Conveyor speed: 1.0-26 ft/min

Head Grinding (R) Main drive motor: 1x 15 kW
Current load motor: 1x 29 A
Edge Rounding (E) Main drive motor: 8x 0.75 kW
Current load motor: 8x 1.7 A
Vacuum Main drive motor: 1x 7.5 kW
Current load motor: 1x 17 A

Electrical Voltage: 480 V; 60 Hz
Total weight: 11,244 lbs
Dimensions (WxDxH): 86″ x 130″ x 89″

EQUIPPED WITH:
Siemens S7-1200 PLC with Tough Screen
Photo Optic Belt Tracking
Pneumatic Belt Tensioning
53″ Operational Width
3 Aggregate System
Conveyor Belt Cleaning Brush
Vacuum Table, SMD 335- 13,300 kpa

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
