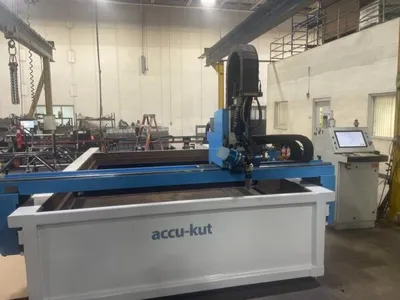

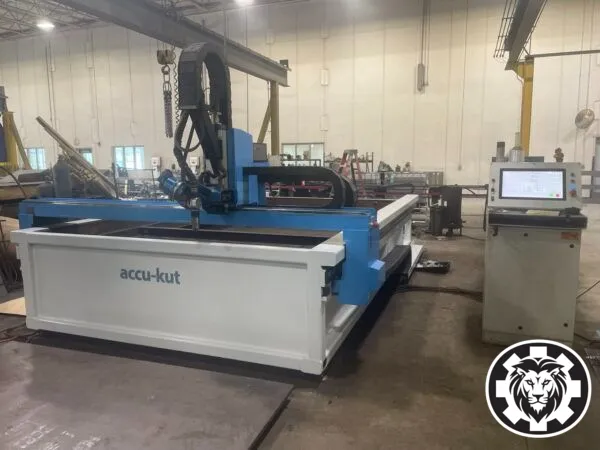

8′ x 12′ AKS Accu-Kut 5-Axis Plasma Cutter System, 2022 – HyperTherm XPR300, Beveling Head, Water Table, 300 Amp

X-Axis Travel: 144″
Y-Axis Travel: 96″
Z-Axis Clearance: 4″
Head Beveling: +/- 45 degrees
(A, V, K, X, top-Y and bottom-Y style bevel cuts)
Travel Speed: 1,200 IPM

Approx Main Table Footprint: 16′ 4″ x 8′ 10″
Electrical Power: 208/240V

EQUIPPED WITH:
HyperTherm Edge Connect CNC Controller
HyperTherm XPR Plasma Power Supply
AKS Robo-Kut 5-Axis Bevel Cutting Head with True Bevel System
HyperTherm XPR300 Plasma Cutting Torch- 300 Amps
Advanced Torch Height Control Sensor
12′ X-Axis Dual Synchronized Drives with Helical Rack & Pinion
8′ Y-Axis Bridge Drive with Helical Rack & Pinion
8′ x 12′ Water Table
Removable/Replaceable Slat Holder System
Magnetic Breakaway Torch
Side Clean Out Access
Wi-Fi Monitoring
HyperTherm Phoenix & ProNest Software

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
