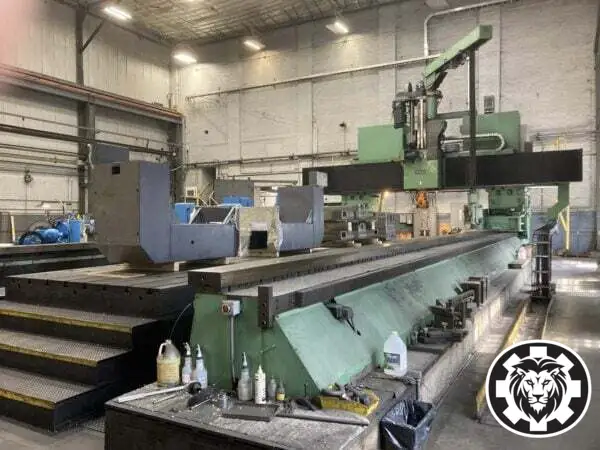

40′ x 8′ RD&D VTC 53/60 CNC Gantry Mill, 1990 – Universal Head, 80 HP, Cat 50, Fanuc Control

X Axis: 540″
Y Axis: 162″
Z Axis w/Head: 39″
Z Axis w/o Head: 59″
Distance Between Table and Bottom of Bridge: 63″
Distance Between Gantry Legs/Columns: 164″
General Machining Tolerance: +/- 0.002″
Workpiece Table Length: 40′
Workpiece Table Width: 8′
Workpiece Table Height Above Floor Level: 3′
Max Workpiece Weight: 130,000

Spindle Motor: 80 HP
Max Spindle Speed: 1500 RPM
Spindle Taper: CAT50

Equipped With:
– Fanuc 15M CNC Control
– Universal Angle Head
– Operator Hand Pendant
– Flame Hardened and Ground Box Way Guide Surfaces
– Dual Servo Motor Master/Slave Drive on each Gantry Leg
– Linear Scale Positioning Feedback on All Axes
– Y & Z Axes Drive Motors Coupled Directly to Ball-Screws

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
