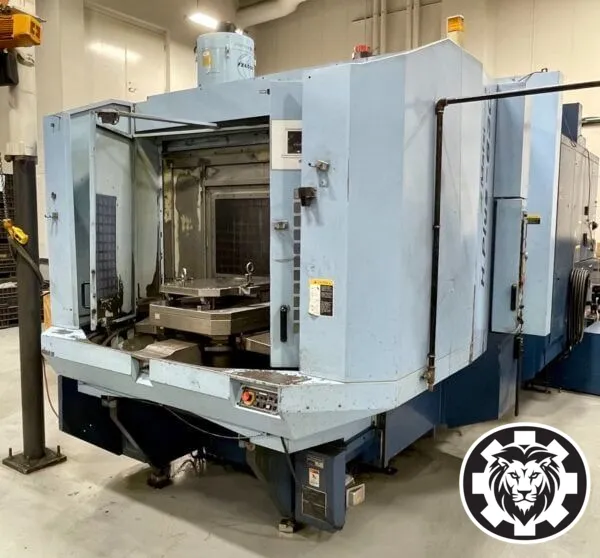

Matsuura H-Plus 630 HMC, 2007 – 630mm Pallets, TSC, Renishaw Probing, Full 4th Axis

X-AXIS TRAVEL: 41.34″
Y-AXIS TRAVEL: 36.22″
Z-AXIS TRAVEL: 34.25″
PALLET INDEXING (B-AXIS): FULL 4TH
PALLET SIZE: 24.8″ X 24.8″ (630mm)
PALLET CAPACITY: 2,640 LBS
X/Y/Z-AXIS RAPID FEEDRATE: 1968 IPM

SPINDLE SPEEDS: 12,000 RPM
SPINDLE TAPER: BT 50, Big Plus Spindle
MAIN MOTOR: 40 HP
TOOL CHANGER CAPACITY: 60

EQUIPPED WITH:
Fanuc G-TECH 30i CNC Control
Additional Block Skip 2-9
Additive Work Co-ordinate- 48 Sets
Full 4th Axis IDOCTOSYN Scales
Renishaw NC4 Tool Setting System- Renishaw MP700 Inspection Probe
60 Position Automatic Tool Changer
2 Pallet Automatic Pallet Changer
12K RPM Big Plus Spindle- BT 50 Spindle Taper
High Pressure Through Spindle Coolant- 70 Bar
Wash Gun & Swarf Management System
Overhead Flood Coolant
Filtermist
Chip Conveyor

2x Pallets
Approx 16,000 Cutting Hours
Low Hours since spindle replaced

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
