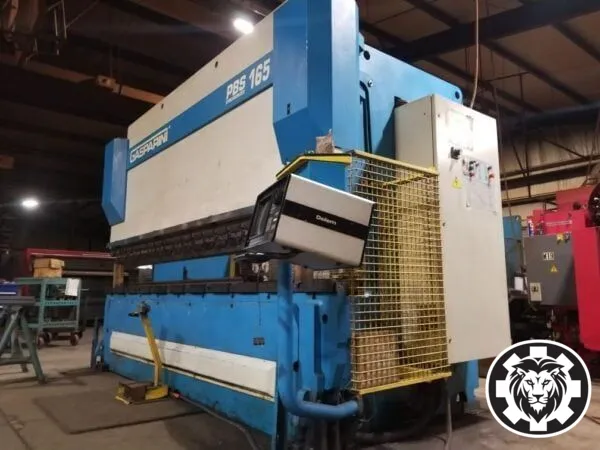

165 Ton x 13.5′ Gasparini PBS 165/4300 CNC Press Brake, 1999 – 6-Axis, Crowning, Hydraulic Clamping

6-Axis Synchronized CNC Press Brake with Hydraulic Crowning

Bending Length: 122.05 in
Tonnage: 165 ton
Throat Depth: 17.72 in
Distance Between Uprights: 102.36 in
Open Height: 17.32 in
Upper Beam Travel: 9.84 in
Speeds:
Approach: 3.94 in/sec
Return: 4.72 in/sec
Working: 0-0.39 in/sec
Overall Dimensions: 161.42 x 74.02 x 114.96 in
Motor Power: 18.5 kW
Control Unit: DELEM DA 65
Weight: 12020 Kg

Equipped With:
Delem DA65 6-Axis CNC Control
4-Axis Backgauge (X, R, Z1, Z2)
Hydraulic Clamping
CNC Crowning

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
