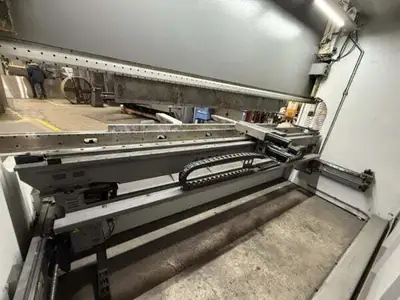

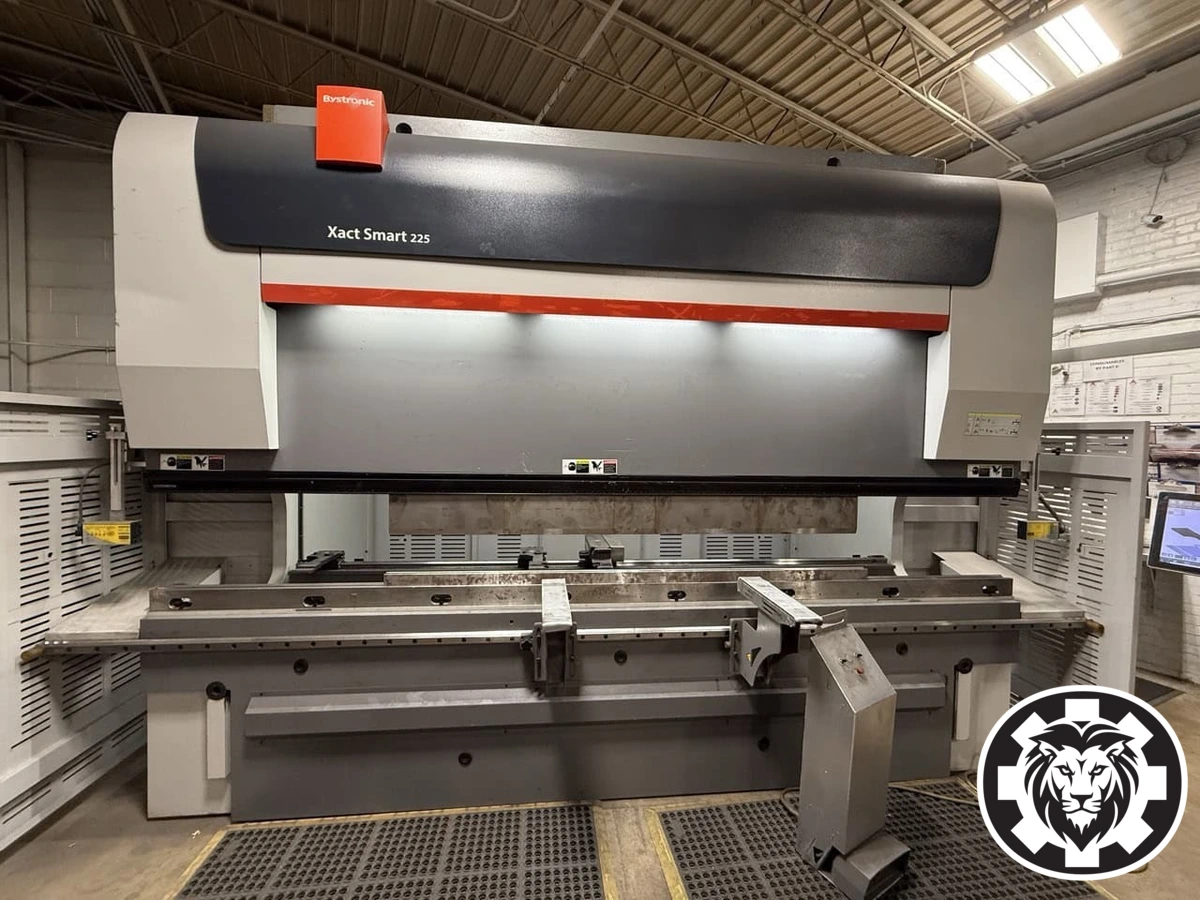

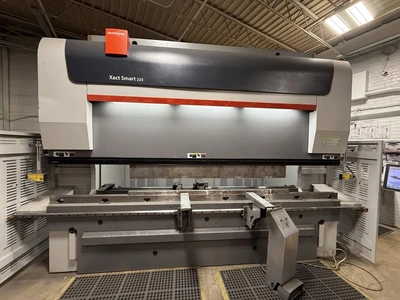

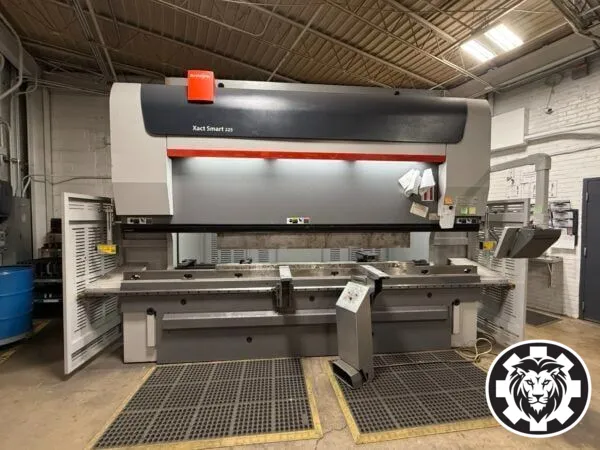

248 Ton x 13′ Bystronic Xact Smart 225-4100 Hydraulic CNC Press Brake, 2017 – 5-Axis Backgauge

Press Capacity: 225 tons
Working Length: 161.4″
Maximum Stroke: 11.8″
Rapid Approach Speed: 5.5″/sec
Working Speed: 0.04-0.39″/sec
Return Speed: 4.5″ inches/sec
Weight: 36,297 lbs.

Control: CNC with ByVision Bending Control with 22″ Full HD Display and Tough Technology
DNC Controlled Hydraulic Crowning
Hydraulic RFA style clamping
Backgauge: 5-axis
Productive Product Pack- Includes T12 with Hydraulic Lower Tool Clamping, H=90mm,
LED Illumination at the front and back,
Enlargement of daylight and Stroke by 100mm
5-Axis Backgauge (X, X1, R, Z1, Z2)
Energy Saver
Tropical Pack (Oil Cooling Unit, Heat Exchanger, assembled on the electric cabinet)
Additional Backstop Arm
Z-Axis Manually Adjusted
2- Manual Adjustable Front Supports, length 400mm
Table T5/90
Electrically interlocked side fences
Rear protection devices/ sliding door incl. interlocing switch
Control console with foot switch
Safety System: Fast Bend S (light curtain)
Power Requirements: 480V, 3-phase, 50 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
