10,000 Watts Bystronic Bystar Fiber 3015 Laser 2020 - 5' x 10' Table
Have one to sell?
ConditionUsed
1 available

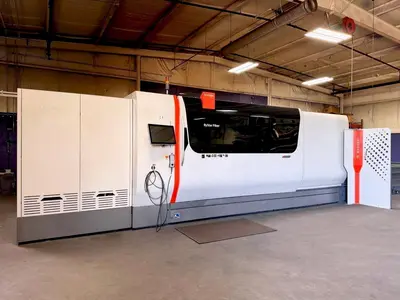

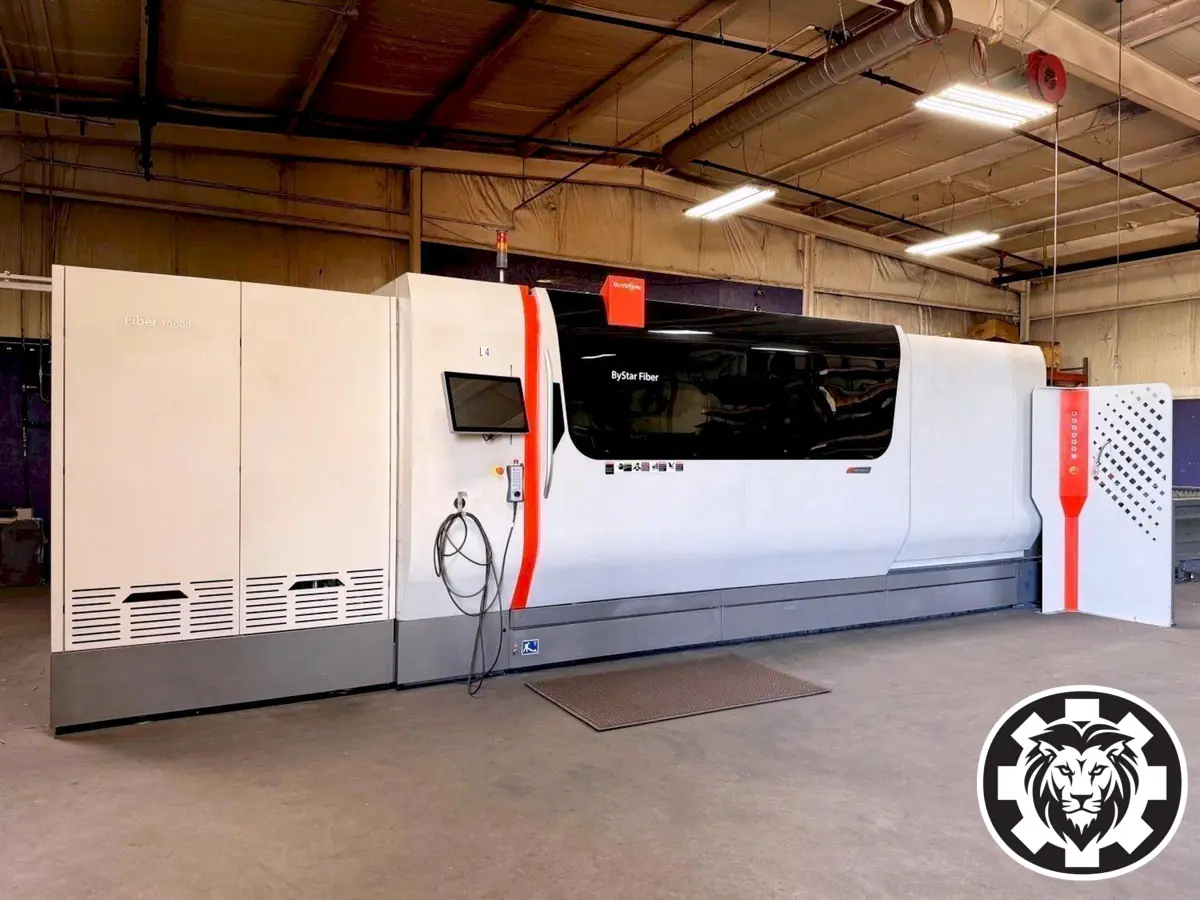

2020 Bystronic Bystar Fiber 3015 laser available with 5' x 10' table. Features Byvision touchscreen CNC control, 10,000W power source, auto nozzle cleaner, dual pallet shuttle, and more. Ideal for high-speed precision tasks.
Control: ByVision CNC
Nominal Sheet Size (X): 118.11”
Nominal Sheet Size (Y): 59.05”
Cutting Area (X): 122.04”
Cutting Area (Y): 62.20”
Cutting Area (Z): 3.93
Max. Pos. Speed Parallel Axis X/Y: 4,724 IPM
Max. Simultaneous Pos. Speed: 6,692 IPM
Edge Detection Accuracy: (±) .01968”
Max. Workpiece Weight: 1,985 Lbs.
Shuttle Table Changeover Time: 25 Sec.
Wavelength: Fiber
Power Source: Fiber 10,000
Power Output: 10,000 Watts
Range of Adjustment: 1,000 W to 10,000 W
Max. Cut Mild Steel: .98”/1.18"
Max. Cut Stainless Steel: 1.18”
Max. Cut Aluminum: 1.18”
Max. Cut Brass: .59”
Max. Cut Copper: .47”
Total Electric Consumption: 22kw
Dimensions: L 468” x W 224” x H 126”
Machine Weight: 24,250 Lbs.
Byvision Touchscreen CNC Control
Manual Control Unit
Bystronic IPG Fiber 10,000 Power Source
5' X 10' Duel Pallet Shuttle Table
High Speed Cutting Head
Auto Nozzle Cleaner
Auto Nozzle Changer
Chiller Unit
Dust Collector
