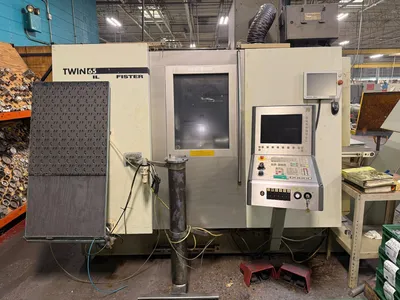

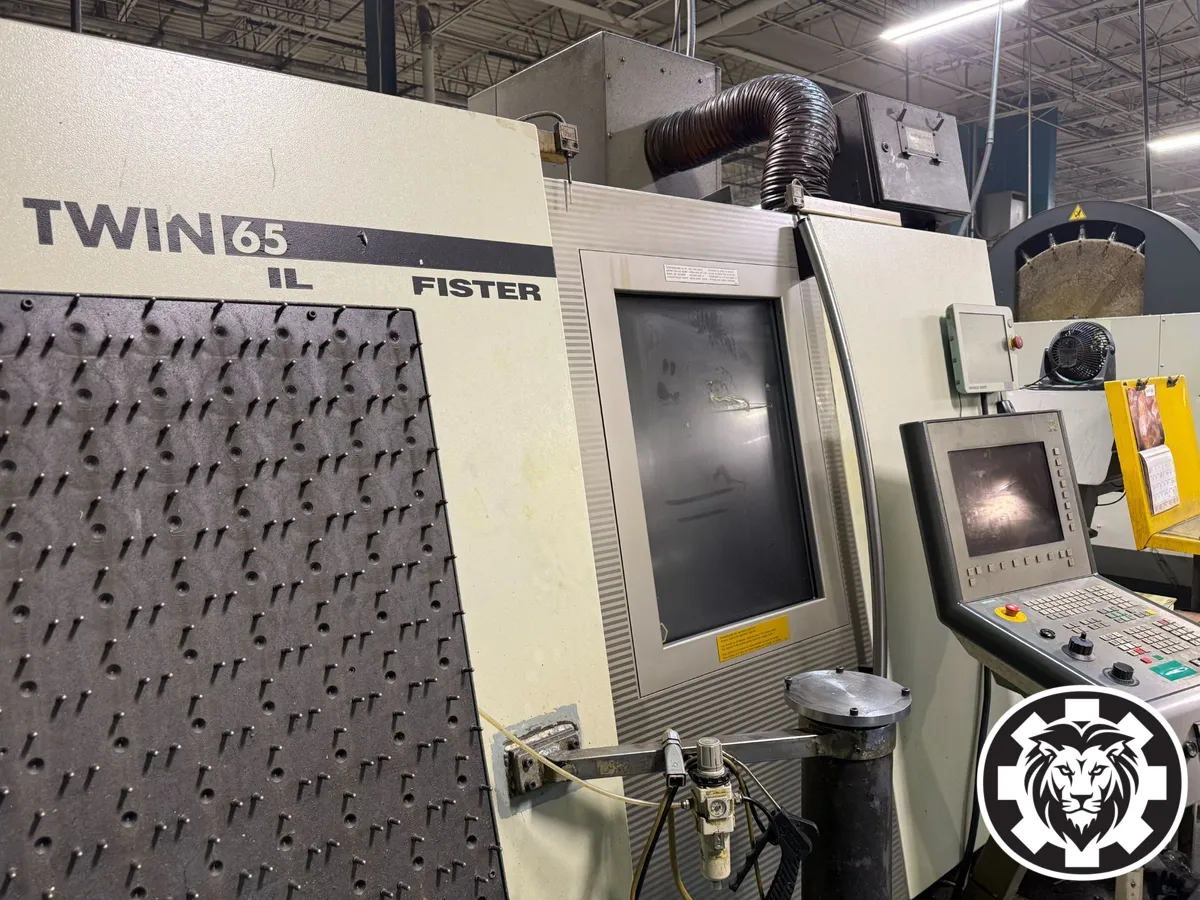

DMG Twin 65 Linear Multi Axis CNC Lathe, 2005 - Sub Spindle
Have one to sell?
ConditionUsed
1 available
DMG Gildemeister Twin 65 Linear Multi Axis CNC Lathe, 2005. Features sub spindle, hydraulic double chuck, max RPM 5,000, and Siemens control. Power: 53.6 hp, dimensions: 162"x121"x110". Contact for details!
Hydraulic Chuck Diameter (double chuck): 8"
Swing Over Bed: 10"
Turning Diameter: 8"
Work Piece Length: 25"
X-Axis: 8.6"
Z-Axis: 21.6"
Spindle Bore: 2.56"
Bottom Turret Tool Changer: 12
Upper Turret Tool Changer: 12
Max Spindle Speed: 5000 RPM
Main Motor: 40 KW
Power: 400V/230/3Ph/60Hz
Control: Siemens
Approx Weight: 16,500 LBS
Approx Dims: 162" x 121" x 110"
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
DMG Gildemeister Twin 65 Linear Multi Axis CNC Lathe, 2005. Features sub spindle, hydraulic double chuck, max RPM 5,000, and Siemens control. Power: 53.6 hp, dimensions: 162"x121"x110". Contact for details!
Imperial
| Swing | 10" |
| Machining Length | 25" |
| # Axis | 2 |
| Chuck Size | 8" |
| Bar Capacity | 2.56" |
| Power | 53.6 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 8" |
| Control | CNC (Siemens) |
| Dimensions | 162 x 121 x 110 |
| Weight | 16500 LBS |
Hydraulic Chuck Diameter (double chuck): 8"
Swing Over Bed: 10"
Turning Diameter: 8"
Work Piece Length: 25"
X-Axis: 8.6"
Z-Axis: 21.6"
Spindle Bore: 2.56"
Bottom Turret Tool Changer: 12
Upper Turret Tool Changer: 12
Max Spindle Speed: 5000 RPM
Main Motor: 40 KW
Power: 400V/230/3Ph/60Hz
Control: Siemens
Approx Weight: 16,500 LBS
Approx Dims: 162" x 121" x 110"
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
