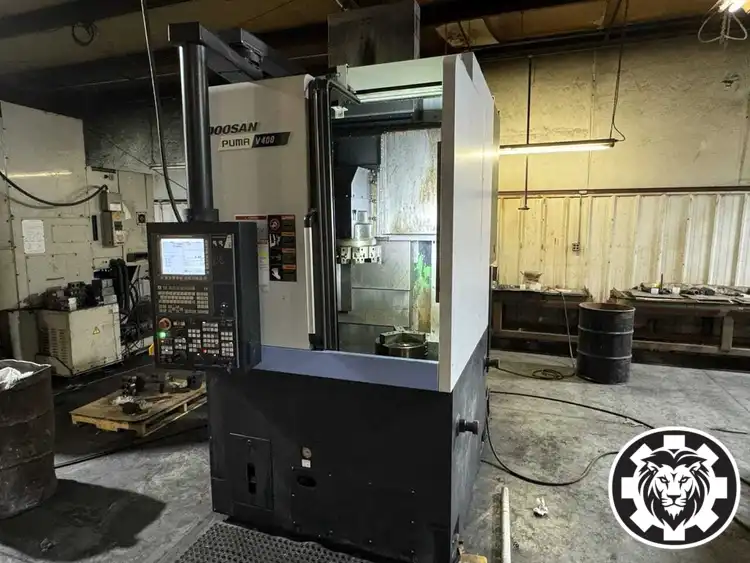

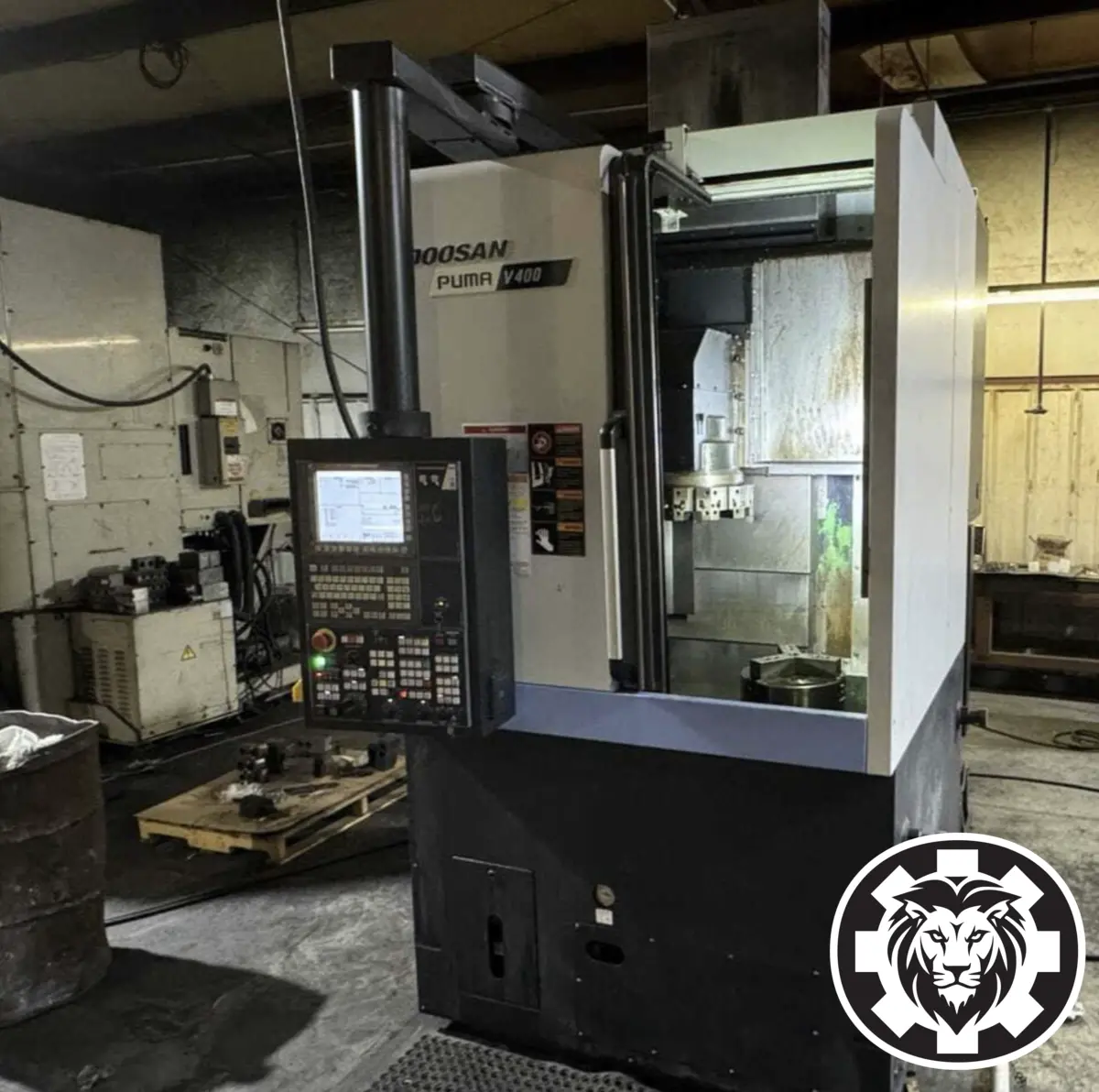

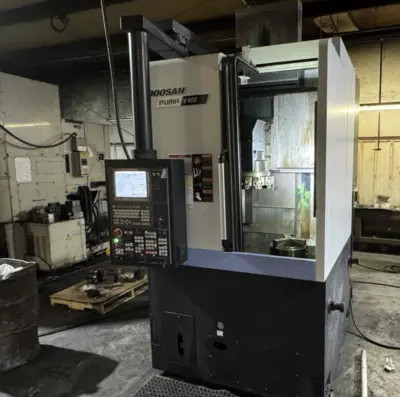

Doosan Puma V400L CNC VTL, 2020 ('18) - Vertical Turret Lathe w/ Fanuc Control
Have one to sell?
ConditionUsed
1 available
Maximum Turning Diameter: 19.5"
Maximum Turning Length: 18.1"
X-Axis Travel: 10.6"
Z-Axis Travel: 19.2"
Rapid Traverse Rate (X/Z): 787 IPM
Chuck Size: 15"
Maximum Table Load: 1100 lbs
Spindle to Table Distance: 45.4"
Spindle Motor Power: 30 HP
Spindle Speed: 3,000 RPM
Torque: 539 ft-lbs
Turret Stations: 12 Slot
Shank: BMT-KEY
Boring Bar Diameter: 2"
Control: Fanuc 0i-T
Approximate Dims: 58" x 126" x 85"
Approximate Weight: 13,200 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
-1 Hennig rear discharge chip conveyor with
variable speed drive, M-code capability and built
in chip stripper bar
-1 Samchully 15" HC 3-jaw CLOSED CENTER
sealed power chuck w adapter pkg
