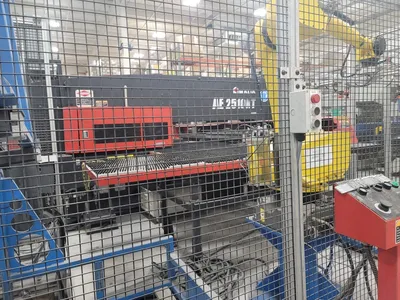

Amada AE-2510NT CNC Turret Punch, 2015 - 4' x 8' Table, Robot + Automation, Tooling
Have one to sell?
ConditionUsed
1 available
2015 AMADA AE-2510NT CNC Turret Punch: 4' x 8' table, 22-ton capacity, 58 turret stations, includes robot and automation. Max accuracy ±0.004", pneumatic clamps, and marking at 900 HPM. Complete with all tooling for efficiency.
Press Capacity: 22 Tons
Max Axis Travels (Y, X): 50 X 98.425"
Max Sheet Size: 50" X 196.85"
Max Sheet Thickness: 0.125"
Max Material Weight: 110lbs
Punching Accuracy: ± 0.004"
Max Feed Speed X-Axis: 3150
Max Feed Speed Y-Axis: 2362
Marking: 900HPM
Punching: 350 (X), 285 (Y)
Turret Rotation Speed: 30RPM
Turret Feed Clearance: 0.984"
Turret Configuration: 58-Station 2 Auto-Index
Auto Index Rotation Speed: 60RPM
Maximum Hole Diameter: 4.5"
Pneumatic X-Gauge Block: Standard
Pneumatic Clamps: 3 Standard
Program Storage: 10MB (120KB max program size)

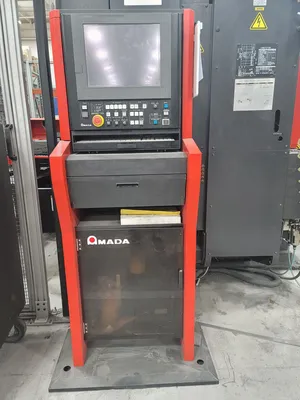

Graphic Screen: TFT 15"
PV (Power Vacuum) Slug Removal: Standard (0.5" & 1.25")
Power Requirement: 19KVA
Operating Voltage: 200/208V, 3 Phase
Operating Air Pressure: 72PSI
Compressed Air Pressure: 17.65 cubic ft. per minute
Machine Dimensions: 208" x 202" x 86"
Machine Weight: 26,000lbs
- All Tooling
- Robot + Automation
- Entire Cell
