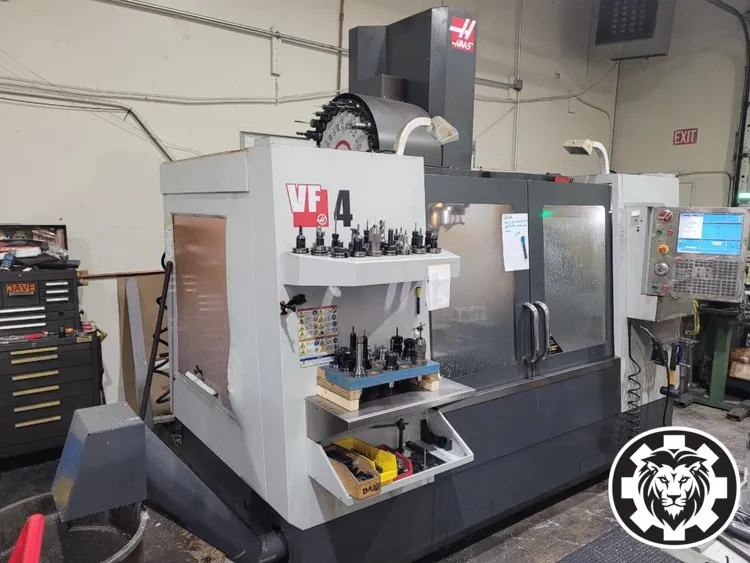

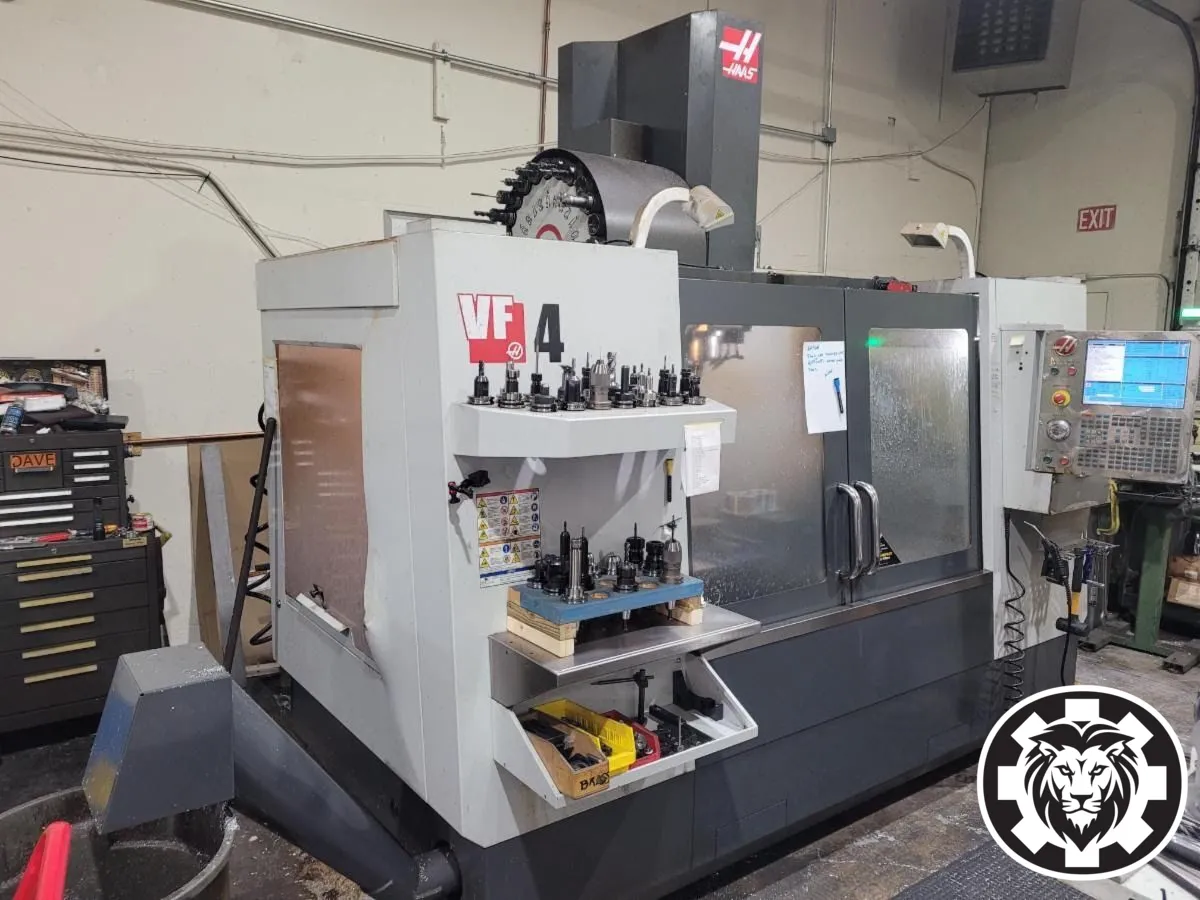

Model: VF-4
Date of Manufacture: 10/2013
Electrics: 230 Volt, 3 Phase, 50-60 Cycle, FLA: 80 Amps
Travel:
-X-Axis: 50"
-Y-Axis: 20"
-Z-Axis: 25"
Spindle Specs:
-Taper: CT40
-Speed: 10,000 RPM
-ATC: 24+1 Slots, Vertical Orientation
Tooling Constraints:
-Max. Tool Weight: 12 lbs.
-Max. Tool Length: 13
-Max. Tool Diameter: 5"
Equipped With:
-Chip Auger
-Rigid Tapping
-Flood Coolant System
-Coolant Tank w/ Pump
-Work Lights
-Serial & Ethernet Ports

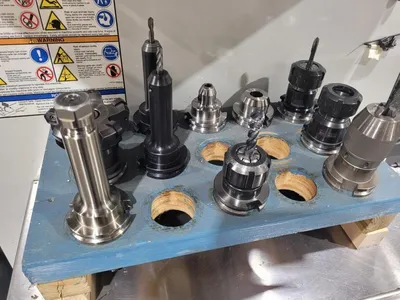

-(15) Holders & Misc. Tooling
Overall Machine Dimensions (approx.): 150" x 110" x 118"
Overall Machine Weight (approx.): 12,500 lbs.
1st Owner Machine
