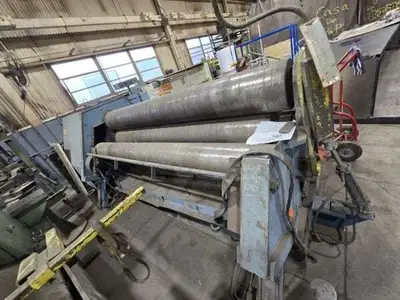

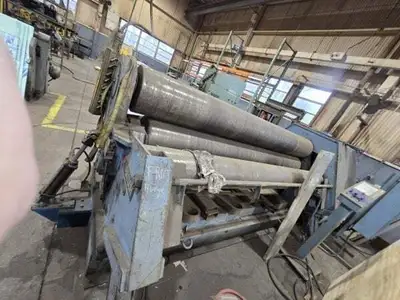

1/2″ x 8′ Bertsch Plate Roll, 1994 – Four Roll
Have one to sell?
ConditionUsed
1 available
BERTSCH 50-08 used plate bending rolls, featuring 96.0" roll length, 12.0" roll diameter, and capable of handling up to 0.5" max thickness. Ideal for professional metal bending applications.
– Rolling Capacity (Mild Steel): Approximately 1/2″ thickness over an 8′ length.
– Pre-Bending Capacity: Slightly less than the full rolling capacity, typically around 0.45″ to 0.5″.
– Roll Diameters:
– Top Roll: Approximately 12″
– Bottom Roll: Approximately 12″
– Side Rolls: Approximately 8″
Minimum
– Single Pass: Around 13.9″ for 3/8″ thick material
– Multi-Pass: Approximately 20.5″ for 1/2″ thick material
– Machine Weight: Approximately 20,000 to 25,000 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
